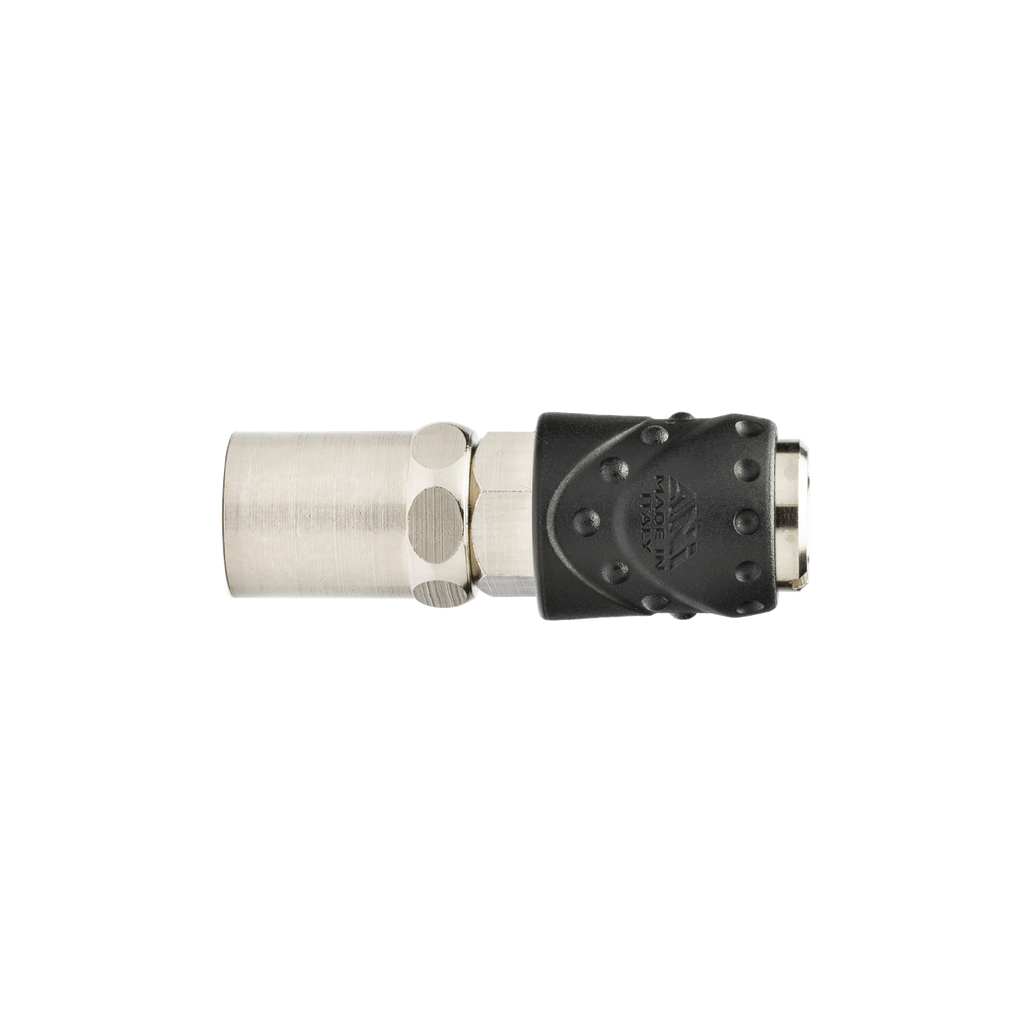

Bearing-type universal quick coupler with sleeve for rubber hose
CODE
Model
Di x De mm
f mm
P mm
L mm
Wrench - 1
Wrench - 2
AH020702
16/A
ø 6 x 13
ø 4
30
73.5
19
17
AH020703
16/A
ø 6 x 14
ø 4
30
73.5
19
19
AH020704
16/A
ø 6 x 15
ø 4
30
73.5
19
21
AH020706
16/A
ø 7 x 16
ø 4
30
73.5
19
21
AH020722
16/B
ø 8 x 12
ø 5
29
73.5
19
17
AH020710
16/B
ø 8 x 15
ø 5
30
73.5
19
21
AH020707
16/B
ø 8 x 17
ø 5
30
73.5
19
21
AH020708
16/B
ø 10 x 17
ø 6
31
73.5
19
20
AH020709
16/B
ø 10 x 19
ø 6
31
73.5
19
24
